UDS Unit Disinfection System
Upon request, complete hygiene is ensured by cleaning all exits and cup holder exits with a solution containing 3% hydrogen peroxide from the hygienic tank. It can be easily removed for filling or cleaning. In today’s conditions, the UDS system provides great convenience for both your patients’ health and your own health. With the UDS system, you can disinfect your unit’s tablet exit pathways in 8-12 seconds, allowing you to work with peace of mind while providing services to your patients.
Correcta S Tablet is designed with a 5-output syringe system. It is prepared with all outputs. Each output has a separate water and air regulator that can be controlled individually.
2- Possibility to connect the serum to the micromotor and angulardrivers for surgical intervention.
3- The control panel, made from hygienic material, offers control of the Chair, Tray, Cup Holder, Reflector, Negatoscope, and Chair movements through the tablet with its large LCD screen.
Magnetic instrument holder, easily removable and cleanable. The silicone cover can be sterilized in an autoclave.
The silicone cover can be easily removed and cleaned, and sterilized in an autoclave.
The assistant arm, equipped with 4 outputs, including 2 surgical aspirators, can have the remaining outputs arranged according to your preferences.
1- The Correcta S Unit’s cuspidor section is made entirely of ceramic, designed to be easily cleaned and suitable for hygienic conditions.
For patient comfort, it is movable to the right and left around its axis.
2- The 4-output Support Arm, which rotates around its axis, is designed for the doctor’s ease of work.
The chair movements, cuspidor, and cup holder functions can be controlled from the control panel.
The cuspidor and cup holder outputs, made of stainless inox material, can be easily removed and cleaned.
Italian Faro Alya
Patented unlimited adjustable head feature
LED Technology with 50,000 lux
Step-by-step intensity increase/decrease
CRI: 95 – the only product in LED technology to reach this level, while the standard is around 85
Side handles can be easily removed and autoclaved
Optionally avaislable protective cover – Polyblock, which prevents composites from freezing
LED technology with 35,000 lux
Side handles can be easily removed and autoclaved
Features video recording mode
Step-by-step intensity increase/decrease
Optionally available protective cover – Polyblock, which prevents composites from freezing
24,000 lux halogen
Step-by-step intensity increase/decrease
Side handles can be easily removed and autoclaved
Halogen dental reflector vision
Light intensity: 15,000 – 25,000 lux
Power supply: 10.5 / 12 V
Colour temperature (°K): >4,500 °K
Power supply: 10.5 / 12 V
Switch and sensor: 17/24 V
With potentiometer
Light intensity (lux): 15,000 – 25,000 lux
Colour temperature (°K): >4,500 °K
Bulb: Tungsten halogen type H-star 12V 50W low pressure
Light pattern: 10 x 20 cm
The light has been positively tested and has an IMQ certification.
The aspirator filters can also be easily removed and cleaned.
With a single button, it is possible to choose between using tap water or tank water.
The water tank can be easily removed from the unit with a magnetic lid for filling or cleaning.

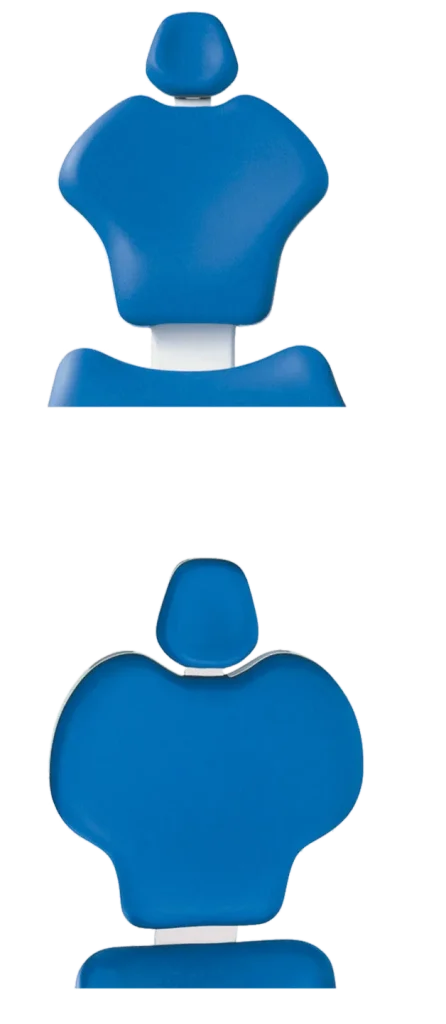

Narrow or wide backrest seat selection

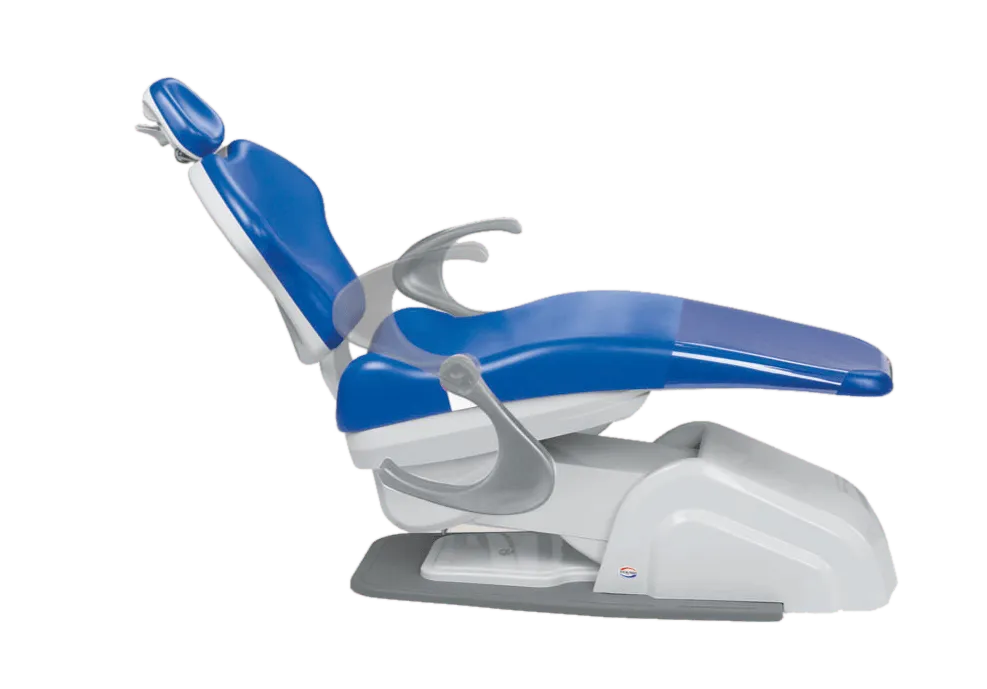

The Elegant Dental Chair, ergonomically designed with patient comfort in mind, provides the doctor with the desired working position through its adjustable backrest and bed section.
The chair movements, which can be adjusted either programmatically or manually, also include a hip-moving Trendelenburg position.
A movable right arm can be added, if desired, to make it easier for the patient to sit and stand up.

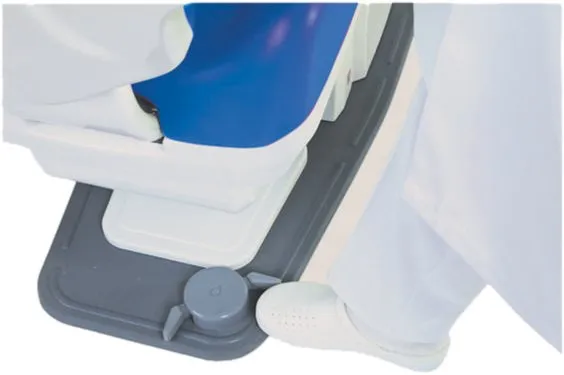

The control panel fixed to the unit base allows the doctor to change the chair movements during intraoral procedures using the foot control.
Electric – Pneumatic and chair-controlled pedal (Chip Blower System)
Pneumatic pedal with Chip Blower system, water spray controlled

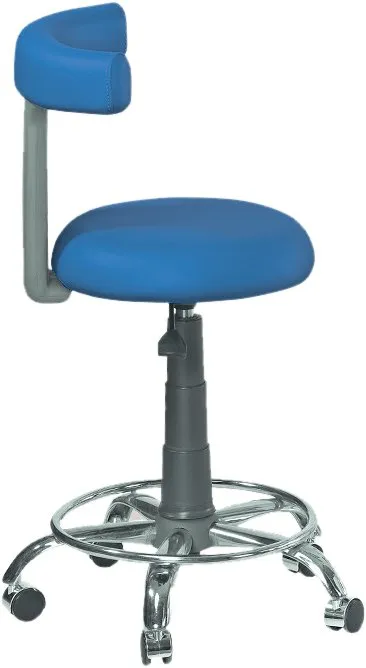

Doctor stool with chrome base and footrest ring
Continuous doctor stool with footrest ring

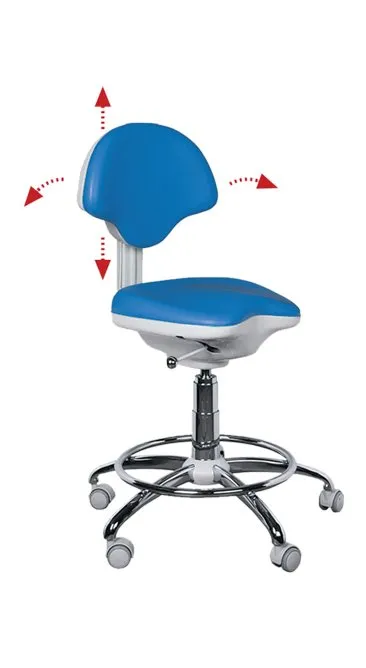

The backrest section is adjustable up and down, as well as forward and backward. It can be fixed in the desired position.

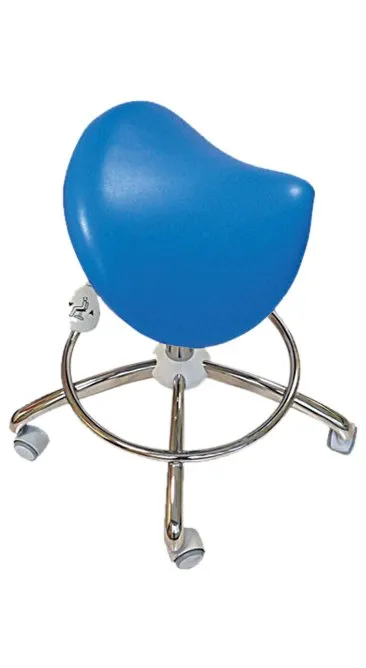

Multi-functional doctor stool with chrome base and footrest ring.

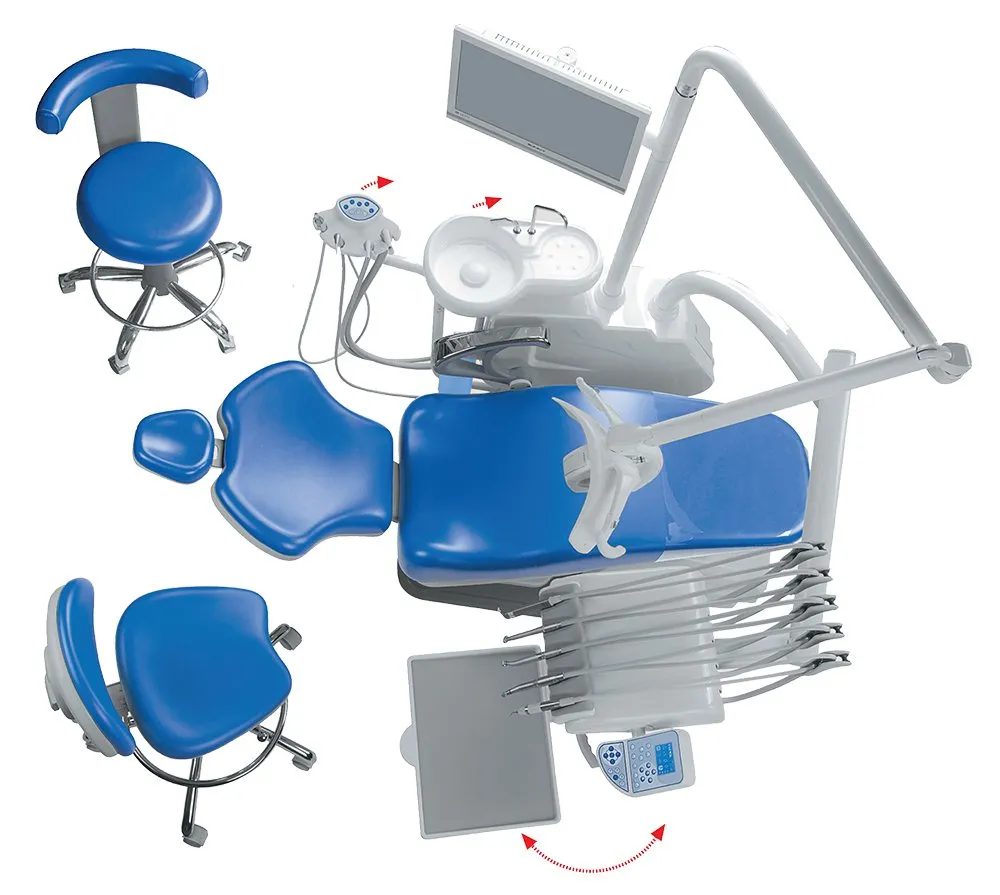

The tablet, tray, support arm, and cuspidor, which can rotate around their axis, provide comfort for the patient and ease of work for the doctor.
Thanks to its dual-function design, the backrest can be easily adjusted to the most comfortable position for the patient. It is also suitable for use by disabled patients.
Multi-axis movement capability with the Planet Backrest.
The Multi Axis Planet backrest allows the doctor to manually hold the patient’s head at the desired angle, offering a much more ergonomic working position.
Soft Upholstery Option
What is your life color?
A wide range of color options suitable for your work environment
